รหัสสินค้า: 000130

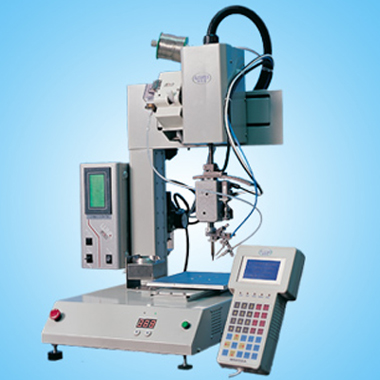

เครื่องบัดกรีอัตโนมัติ SR200A desktop soldering robot

Email: sales@truetronix.com

Specifications:

• The range of XY axes movement:X=200mm Y=200mm
• The range of ZR axis shaft movement:    Z=50mmR=360°
• Movement Speed:  XY axes PTP:5-500mm/secs

Z axis PTP:2.5-250mm/secs

R axis PTP:6-600°/secs

XY Z axes PTP: 0.1-500/secs

• Memory capacity:100.000 point
• Minimum analysis:0.01mm
• Repeated accuracy:±0.02mm
• Weight:35kg
• Power:Max.320W
• Air pressure::4~5kg/cm2
• The range of application soldering tin:0.4mm~1.6mm
• Soldering parameter:7group(PTP:4group,CP:3group)
• Temperature range:0-500
• The position that send solder: Adjustable & high precision screw control

Features:

• Iron head of cooling down quickly
• The temperature sensor of high accuracy is located in the front of iron, so the sensor can detect the temperature of small variety from iron head.
• The temperature can be up to 300 within six seconds.
• The iron head with cassette design can be changed quickly and use conveniently
• The types of the irons are all kinds of and can quickly resolve high difficulty soldering craft.
• Solder feeder with preventing rosin flux to explode
• The knife gear press a small hole from the side of soldering and let welding flux exudes while the tin is be offered by rule and line, by leaps and bounds reduce the Tin explode that the boil of welding flux lead to, thereby guarantee the cleanness of soldering place, and reduce the tin ball when soldering, because the tin balls influence other sensitive place of PCB
• Assistant function othat send solder wire
• Passing through to adjust flucture position of locating equipment to adjust the position that iron head offer soldering tin secondly, the tin that be offered firstly can let iron head touch tin in advance, and let soldering is more quick and more perfect
• Cassette iron group that directly puff netrogen
• Nitrogen nozzles and iron head are integrated, the pre-heated nitrogen can be pushed out from the tips of iron, the best soldering effect can be reached even with small nitrogen, the equipment is widely used in lead-free soldering industry.
