เครื่องทดสอบแรงบิด ดิจิตอล Digital torque tester ST series

Email: sales@truetronix.com

Feature:
It is widely used in electric, light industry, machine-made industry and scientific research.

Descriptions:

• Peak holding and auto-releasing function;
• Automatic power off;
• Comparing function;
• Average calculating;
• Units conversion;
• RS-230C output/printer

Specifications:

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

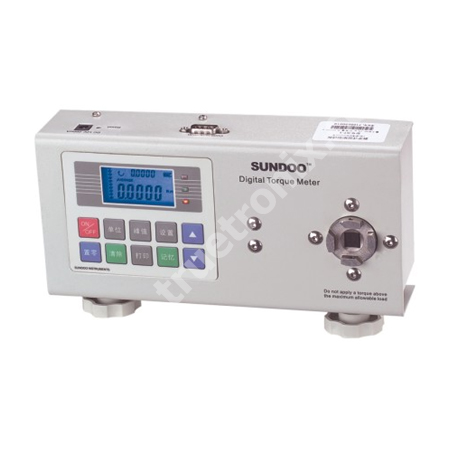

เครื่องวัดแรงบิด เครื่องทดสอบทอร์ค Torque Tester ST series

Email: sales@truetronix.com

Descriptions:

As a special precision measuring equipment, ST Series Digital Torque Meter is R&D for testing and measuring many kinds of torque. The Meter is applied with the measured and calibrated torque of motorize or air-driving clamps, torque screwdriver and torque spanner.

Features:

• Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds);
• Automatic power off function: This function saves battery and keeps the gauge safe, also the power off time(1-60minutes) can be set By yourself;
• Comparing function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);
• Memory function: Memory 10 testing data, and calculate the average;
• Three units conversion: Converting three units(N.m, kgf.cm, ibf.in) automatically;
• RS-232C output: Connecting outside equipment and using the related CD for transmitting the tested data to computer for relevant treatment.
• Test ramge: 1N.m to 500N.m

Specifications:

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงบิดดิจิตอล ANL Series Digital Torque Gauge

เครื่องวัดแรงบิดฝาขวด ภาชนะ ANL-P Series Cap Torque Gauge(1-20N.m)

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงบิดติจิตอล เครื่องทดสอบแรงบิด ST-10B

Email: sales@truetronix.com

ST-10B Opening digital torque tester:

• 10N.m bottle cap torque meter
• Opening torque meter
• Closing torque meter

ST-10B opening digital torque meter is designed for detecting and calibrating the torsion of opening and closing various caps.

Features:

• 10N.m bottle cap torque meter
• Opening torque meter
• Closing torque meter
• Peaking holding and auto releasing function, holding time can be set by user
• Judge the test results by initially imput the max and min limits
• Memory 10 test data and calculate the average
• Three units conversion: N.m, kgf.cm, lbf.in
• Automatic power off, power off time can be freely set (1-60mins)
• Inside printer: printing testing curve or 10 groups of tested data
• RS-232 output: connecting to computer to view force curve by testing software. Or transmit data to computer and save it into Excel to do analysis and print
• Capacity: 10N.m, resolution: 0.005N.m
• Power: 220 ± 10%V  100W
• Dimension: 365*210*135mm
• Net Weight: 9.0kgs

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงบิด ทดสอบแรงบิดดิจิตอล I-8 series

Email: sales@truetronix.com

Descriptions:

• Torque can be checked while the bits are installed.
• No rewinding is required in measuring.
• Capacity : Various models from 3.0mN•m to 8N•m
• Display : 4 digits LCD display with sign
• Measuring unit: N•m
• Operating temperature : 0 to 40 degree Celsius
• Power supply : NiCd battery 1.2V×5 cells (1200mAh)
• Weight : Approx. 1kg
• Output function : RS232 Compatible(Baud rate 9600)
• Function : Auto-zero function, Data output function, Auto-power off function

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงบิด เช็คแรงบิดแบบดิจิตอล HTG2 series

Email: sales@truetronix.com

Applications

• Both squeeze and return torque measurement of screws or bolts
• Destructive examination and strength check of a screws or bolts
• Torque measurement of rotary switch
• Rotation resistance of motor axis

Features

• Bearing support of a measurement axis is adopted, and the reliability of measurement increased.
• Peak hold function
• Comparator function which can program Hi/Lo set point., and memory function.
• Overload warning by flashing LED
• It is PC connectable through RS-232C and programable
• Selectable three units (N-m, Kgf-m, and lb-in)

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

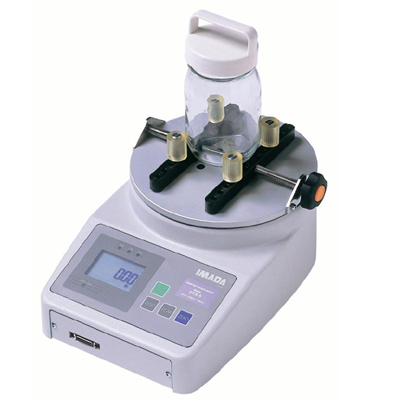

เครื่องวัดแรงบิดฝาขวด ฝาภาชนะแบบดิจิตอล DTX2 Series

Email: sales@truetronix.com

Torque tester of screw-caps with easy data processing

Applications:

Measure the torque of screw caps of cosmetics, foods or drinks.

Features:

• Less shakiness of the table unit.
• Weight of table unit and vertical force are kept by 2 ball bearings.
• Easy to clamp the sample by 4 clamping mouth-pieces.
• Digital display shows CW/CCW torque and peak torque.
• Comparator function which can program Hi/Lo set point.
• Memory stores up to 1000 measurement.
• Various outputs RS-232C for PC, Analog and Mitutoyo Digimatic.
• Selectable three units (N-m/Kgf-m/lb-in or N-cm/Kgf-cm/lb-in)
• Two models ( battery use or AC power use) are available

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com
