เครื่องทดสอบแรงแบบดิจิตอล Digital force gauge SH series

Email: sales@truetronix.com

Product Descriptions:

• High accuracy & High resolution: Accuracy: ±0.5% Min resolution : 0.001N;
• Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds);
• Comparing function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);
• Memory functions: Memory 10 testing data, and calculate the average;
• Units conversion: Converting three units(N, kgf, ibf) automatically;
• LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;
• Automatic power off function: Power off time (1-60minutes) can be set yourself;
• RS-232C output: Transmitting the data to Printer or computer, saving it into “Excel” for analysis or printing; Patent number:ZL200430151019.3,ZL200620013022.2.

Specification

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องทดสอบแรงดึงแรงกดแรงผลักแบบดิจิตอล Imada ZTA series

Email: sales@truetronix.com

Features

IMADA force gauges can be used in countless force testing applications such as tension (tensile) test / compression test / peel test, and many others. IMADA offers wide range of force gauges with high quality and high performance to meet your force measurement needs.

 ZTA Specifications

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงดึงแรงกดแรงผลัก Force Gauge SN Series

Email: sales@truetronix.com

Features:

SN series Analog Push Pull Gauge with compact size and high accuracy. They are easy to operate and handy. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force)to the tracking indication(the needle moves in accordance with change of force).As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your measurement purpose.

Specifications:

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

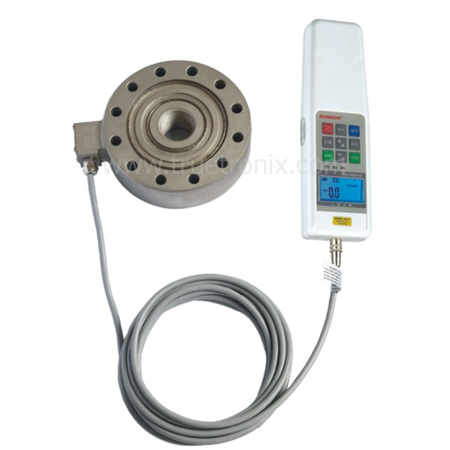

เครื่องทดสอบแรงดึง แรงกด แรงผลัก Digital Push Pull Force gauge SH-500K

Email: sales@truetronix.com

Product Descriptions

• Digital Force Gauge
• High accuracy and resolution
• Measuring tension compresion force gauge
• RS-232C output
• CE,

Specifications:

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงกด แรงดึง Analog Push Pull Force Gauge SKN Series

Email: sales@truetronix.com

Detailed Product Description

• Analog force gauge
• Range: 1000N to 5000N
• High accuracy;
• Peak holding function;
• Two units(N, kg or N,pound)

Product name:SKN Analog Force Gauge

• With compact size and high accuracy, SKN Analog Push Pull Force Gauge is easy to operate and convenient to carry. A single click on the knob of the device will move the indication needle from the peak indication to the tracking indication(the needle moves in accordance with change of force). They are applied in various fields such as electron & electric, wire cable, light textile, hardware, architecture and engine.

Charateristics:

• Easy operation, hand-holding design and being installed with various test stands and clamps;
• Needle indication, easy reading and high accuracy;
• Peak holding and tracking;
• Tolerance limit indication, can set upper and lower limits;
• Two units (N, kg) show on the dial at the same time;
• Patent number: ZL200520074355.1

Specifications:

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

เครื่องวัดแรงดึงแรงกด แบบ มัลติฟังค์ชัน SH Multifunctional push pull force gauge

Email: sales@truetronix.com

Description

• SH digital push pull force gauge:
• SH-1K-100K digital force gauge
• Tension,compression test
• Units convert
• CE, OEM ok.

SH digital push pull force gauge:

• SH Series Digital Push Pull Force Gauge is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product, connecting to computer to display the test force curve and test process, is efficient push pull testing equipment in a new generation.

Features:

• Capacity: 2N to 2000KN
• Tension, compression test
• Units convert
• CE, OEM available
• Patent number: ZL200620013022.2,ZL200610072362.7
• Peak holding and auto-releasing function: The peak holding time can be set (1-10 seconds);
• Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);
• Memory function: Memory 10 testing data, and calculate the average;
• Units conversion: Converting three units(N, kgf, lbf) automatically;
• LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;
• Automatic power off function: Power off time (1-60 minutes) can be set by user;
• RS-232C output: Transmitting the data to Printer or computer, saving it into “Excel” for analysis or printing.
• Power adaptor: 220V or 110V

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

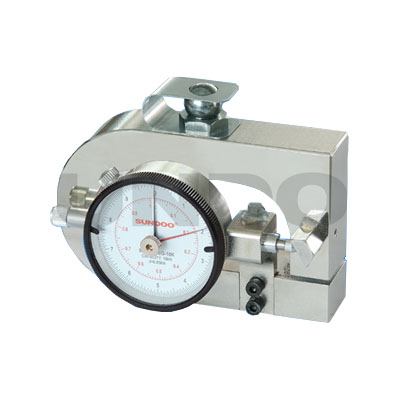

Analog Force Gauge SG series เครื่องทดสอบแรงแบบอนาล็อก

Email: sales@truetronix.com

Description:

Compact Size and high accuracy, SG analog force gauge is easy to operate and convenient to carry, capacity from 10KN to 200KN.

• Needle indication , easy reading ,peak-holding indication ,doing peak test
• Tolerance limit indication device
• Operation easy , equipped various test stands and clamps
• Two units (N,Kg) show on the dial at the same time
• Applied in various fields ,such as hardware, raw materials ,architecture, engine and research institutions

เว็บไซต์ที่เกี่ยวข้อง: http://www.truetronix.com

แท่นทดสอบวัดแรงดึง ASC Wheel Manual Test Stand Max Load 500N

Feature:

ASC Wheel Manual Test Stand(Max Load 500N)is especially designed to match NK and HF Series Force Gauge and can bed combined into a wide use of stands,which usually applied in various testing purpose,such as switch test,connector insertion/withdraw test,and fracture test.The motive carrier are designed wtih the test stand and can be move on X&Y axis.The design is convenient to fix clamps.

• Stable base,handwheel overload,easy operation
• Dimension:L*W*H(mm):350x260x500 (13.8×10.3×20 inch)
• Capacity:500N    Stroke:180mm
• Adapt with:NK/HF series force gauge,clamps,digital scale
